System for Cross-domain Identity Management (SCIM)

ProAuth implements the SCIM interface and supports the SCIM API for the IDP OIDC. Each OIDC IDP instance has its own SCIM endpoint.

Setup IPD for SCIM synchronization

SCIM synchronization is currently only available for IDP types of OpenIdConnect.

Setup ProAuth for SCIM synchronization

To enable and use SCIM in ProAuth in general, the SCIM token security key ScimTokenSecurityKey in the ProAuthRoot appsettings must be set. The SCIM token security key must have a minimum length of 128 bit (16 chars).

This security key is needed to create individual SCIM tokens for the IDP instances where SCIM will be enabled and to verify the security token of every incoming SCIM request.

Enable IPD for SCIM synchronization

To enable the SCIM API on an OIDC IDP, do the following steps:

• Navigate to the ProAuth Admin UI and login with a user assigned to role SubscriptionAdmin or higher
• Navigate to Idp Instances
• Open the IDP in the extended edit view

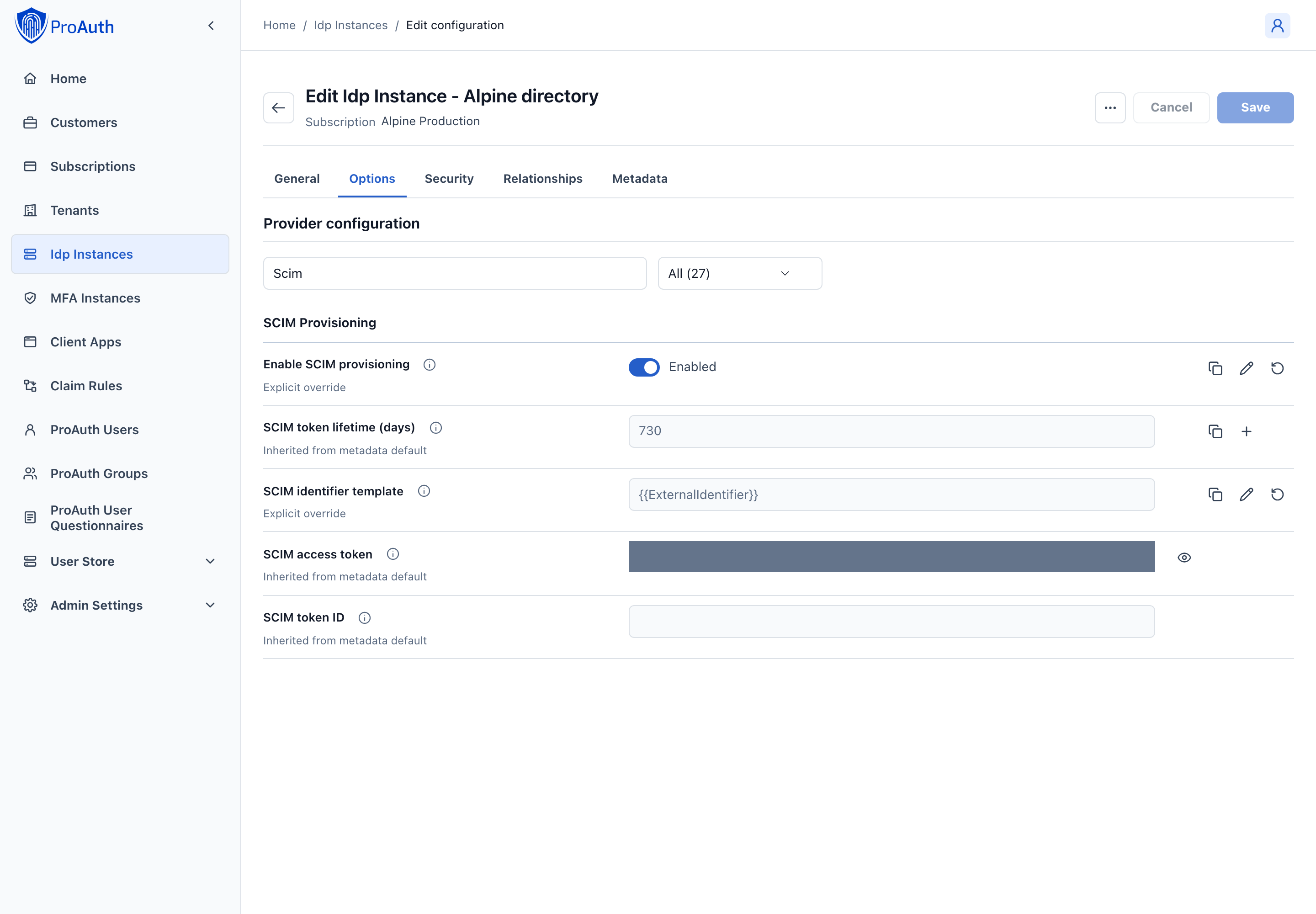

• Search for the option ScimEnabled and change the value to True
• Save the new option value

Once SCIM is enabled by the option ScimEnabled, it's necessary to release a new long-running security token:

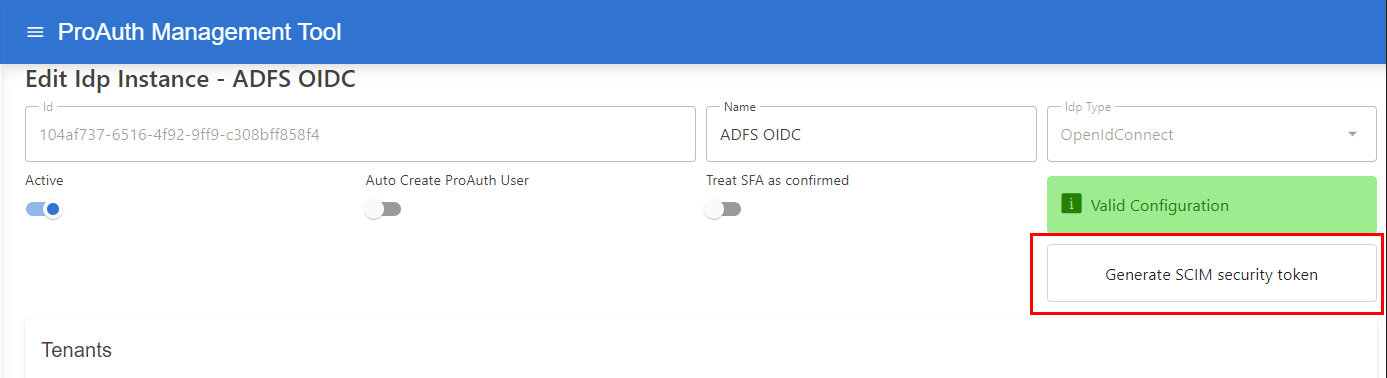

• Press the button Generate SCIM Security Token on the top right of the edit view
• Reload the edit view content by close and re-open the edit view

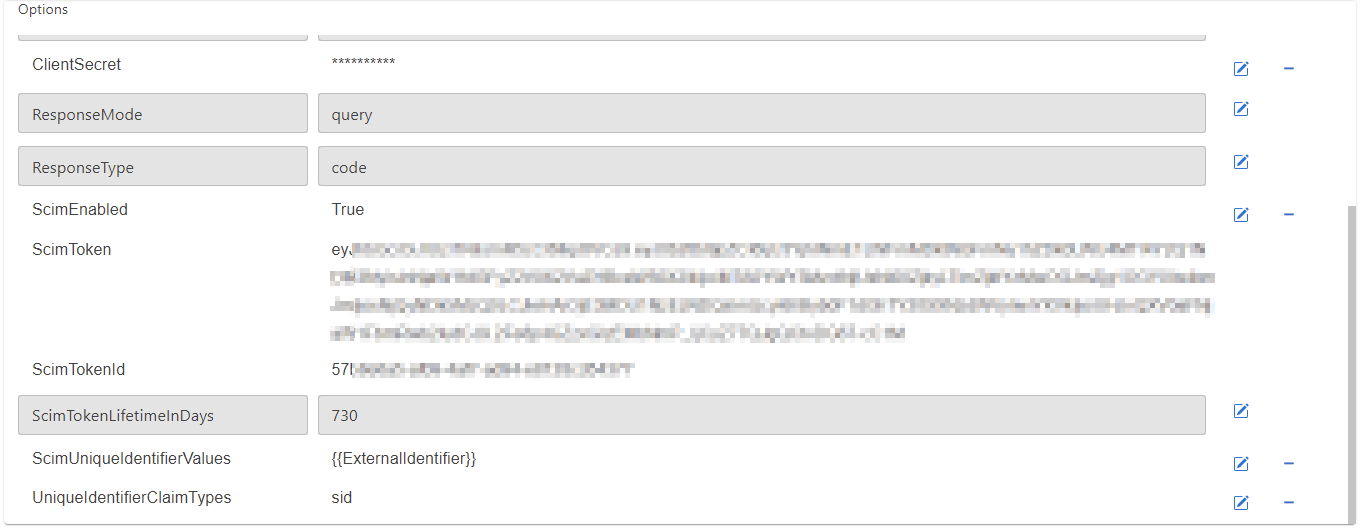

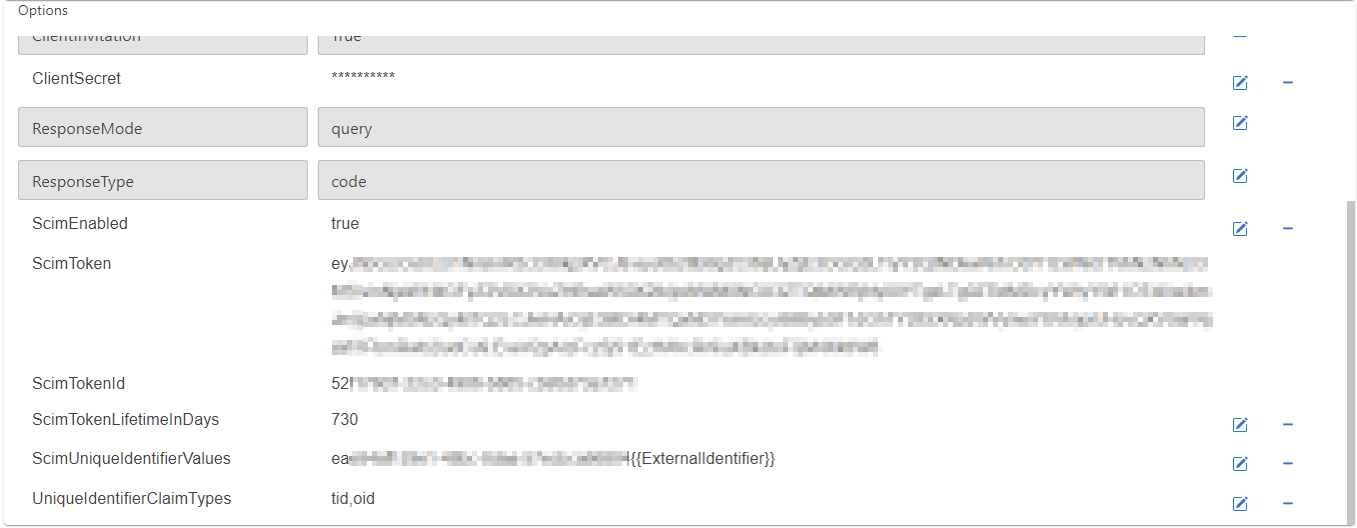

• After the options are reloaded, new values for the options ScimToken and ScimTokenId should appear

Configure IPD for SCIM synchronization with Azure AD

It is necessary to configure the IDP to use specific claims for creating a unique key for the ProAuth user, which can be recognized properly during the login.

Set following options to achieve a correct unique id when synchronize ProAuth Users by the SCIM API:

• Search for the option ScimUniqueIdentifierValues and change the value to <AAD-TenantId>
  • Replace the value <AAD-TenantId> with the TenantID of the ClientApp (it is also part of the Authority uri)
• Search for the option UniqueIdentifierClaimTypes and change the value to tid,oid

Configure IPD for SCIM synchronization with Windows AD FS

It is necessary to configure the IDP to use specific claims for creating a unique key for the ProAuth user, which can be recognized properly during the login.

Set following options to achieve a correct unique id when synchronize ProAuth Users by the SCIM API:

• Search for the option ScimUniqueIdentifierValues and change the value to
• Search for the option UniqueIdentifierClaimTypes and change the value to sid

Setup Scim Synchronization for ProAuth

Once an IDP with SCIM enabled is setup, ProAuth is ready to handle SCIM API requests for that IDP.

Following values from the IDP Instance are necessary in the next steps to configure the SCIM synchronizers.

• IdpInstance Id
• ScimToken

ProAuth supports multiple SCIM endpoints, therefore the IDP Instance ID is part of the ProAuth SCIM API url.

The default SCIM endpoint on ProAuth is:

• https://<ProAuth-URI>/idpscheme/<IdpInstanceId>/scim

Configure Azure Active Directory for SCIM Provisioning.

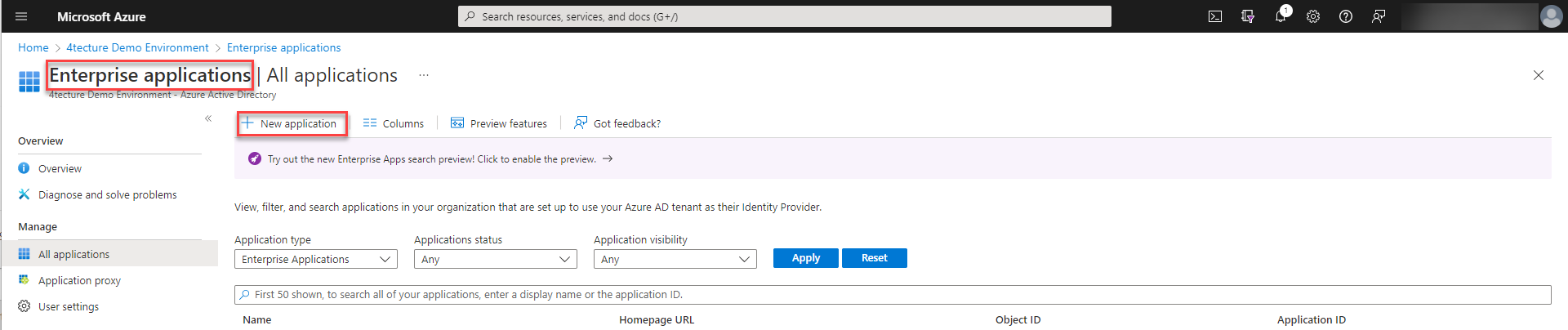

In order to setup SCIM provisioning an enterprise application has to be created within Azure Active Directory.

:::caution If you would like to have SCIM provisioning an enterprise application has to be created. Please do not create an app registration as described in chapter @sec:setupappregistrationaad , if you create an enterprise app, also a corresponding app registration is available and the same configuration steps are applicable. :::

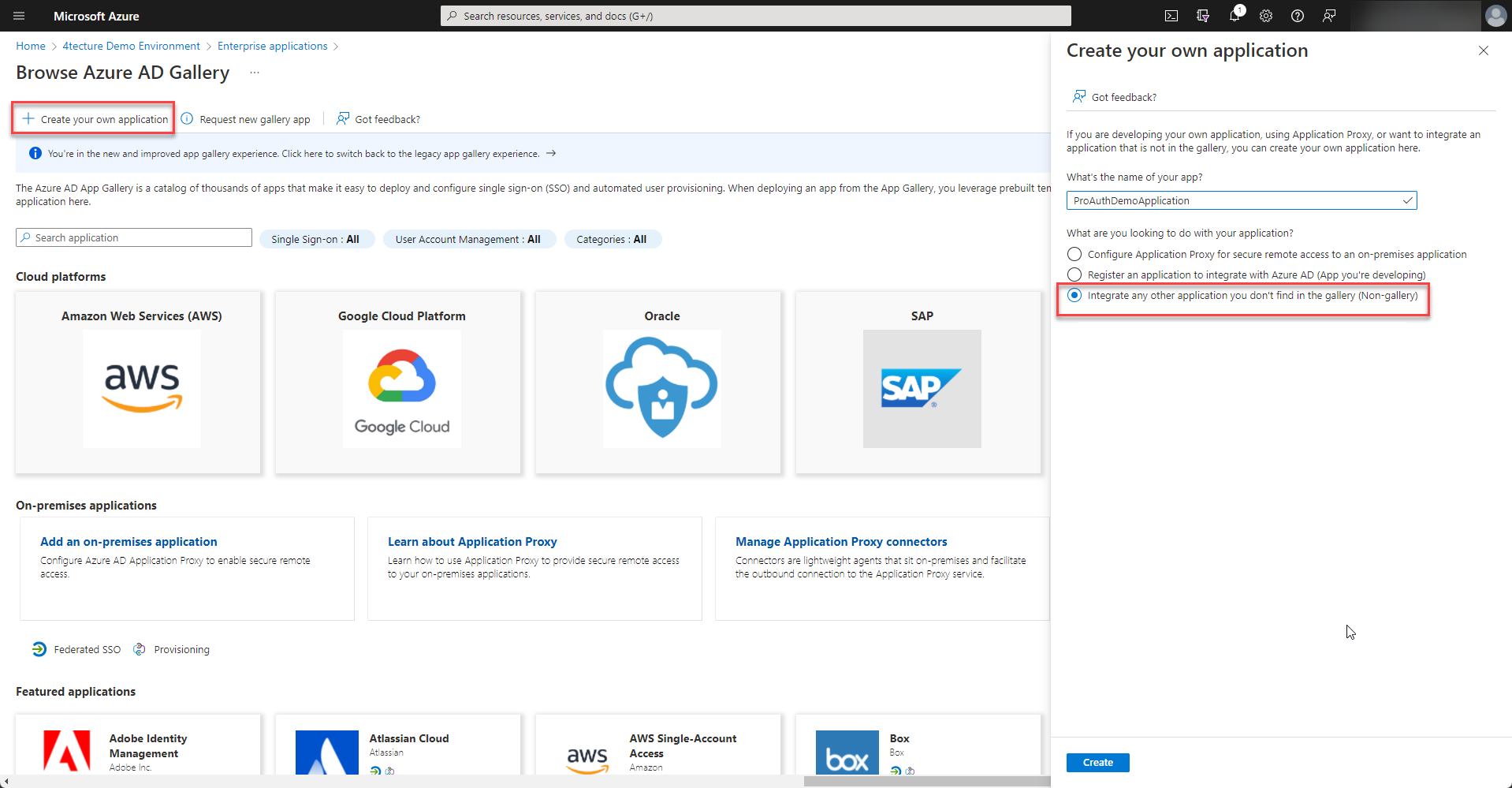

1. Please choose to "Create your own application" and select "Integrate any other application you don't find in the gallery (Non-gallery)" from the options.

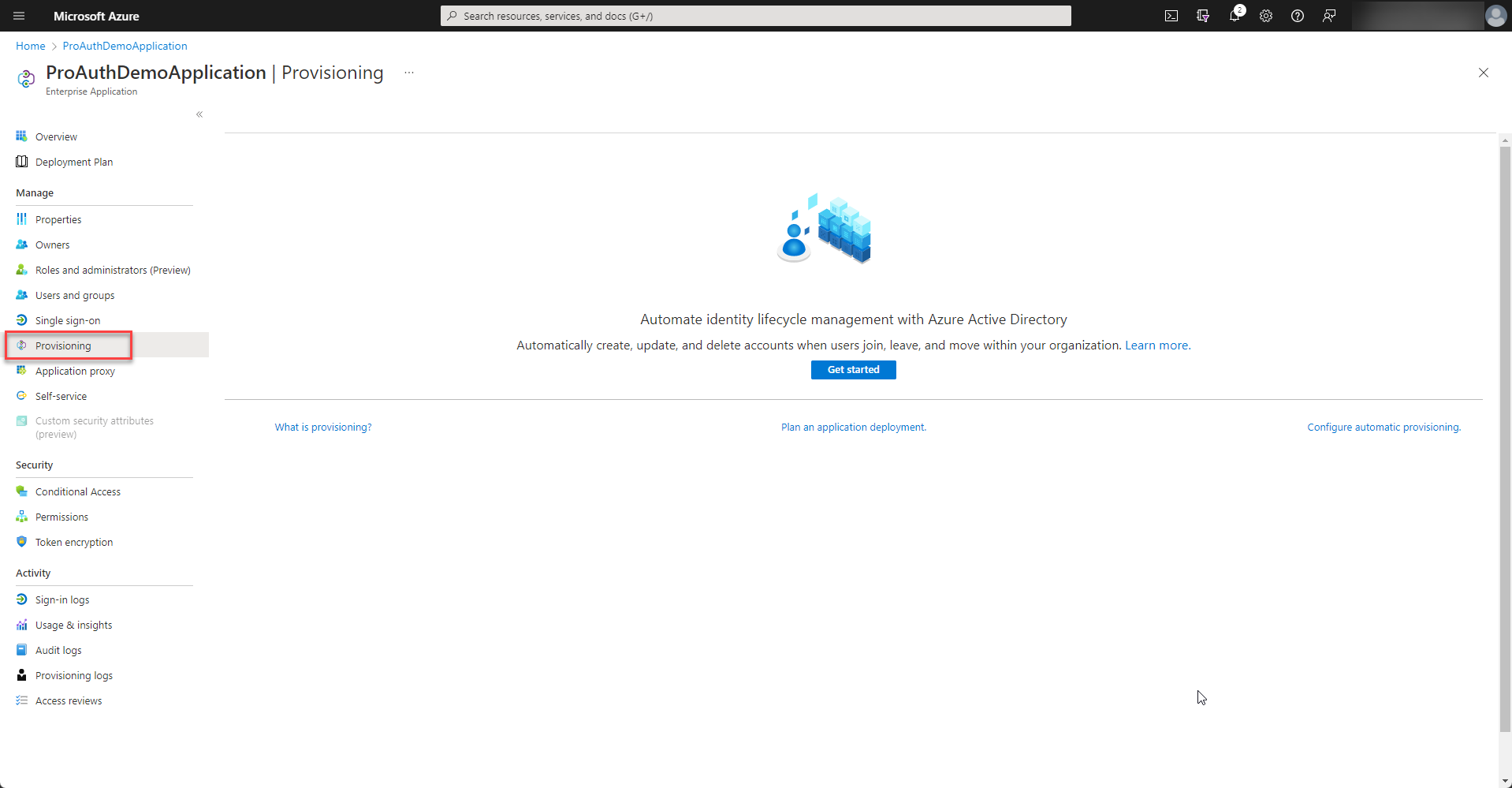

2. Once the enterprise application is created, please start to setup the provisioning.

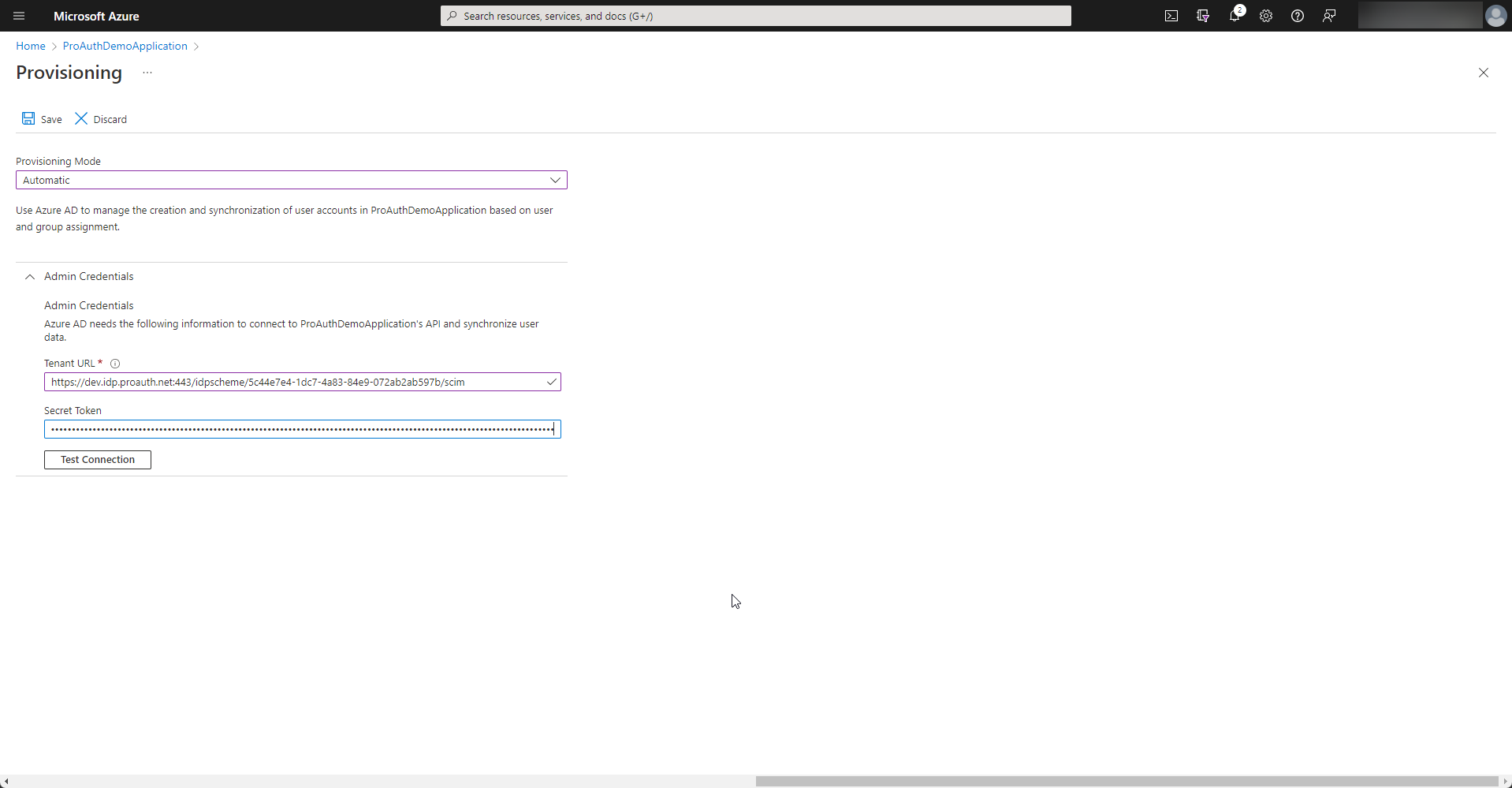

3. Please fill in the Tenant URL and Secret Token from the SCIM Options of your IDP instance in ProAuth and test the connection. If everything is ok, the configuration can be saved.

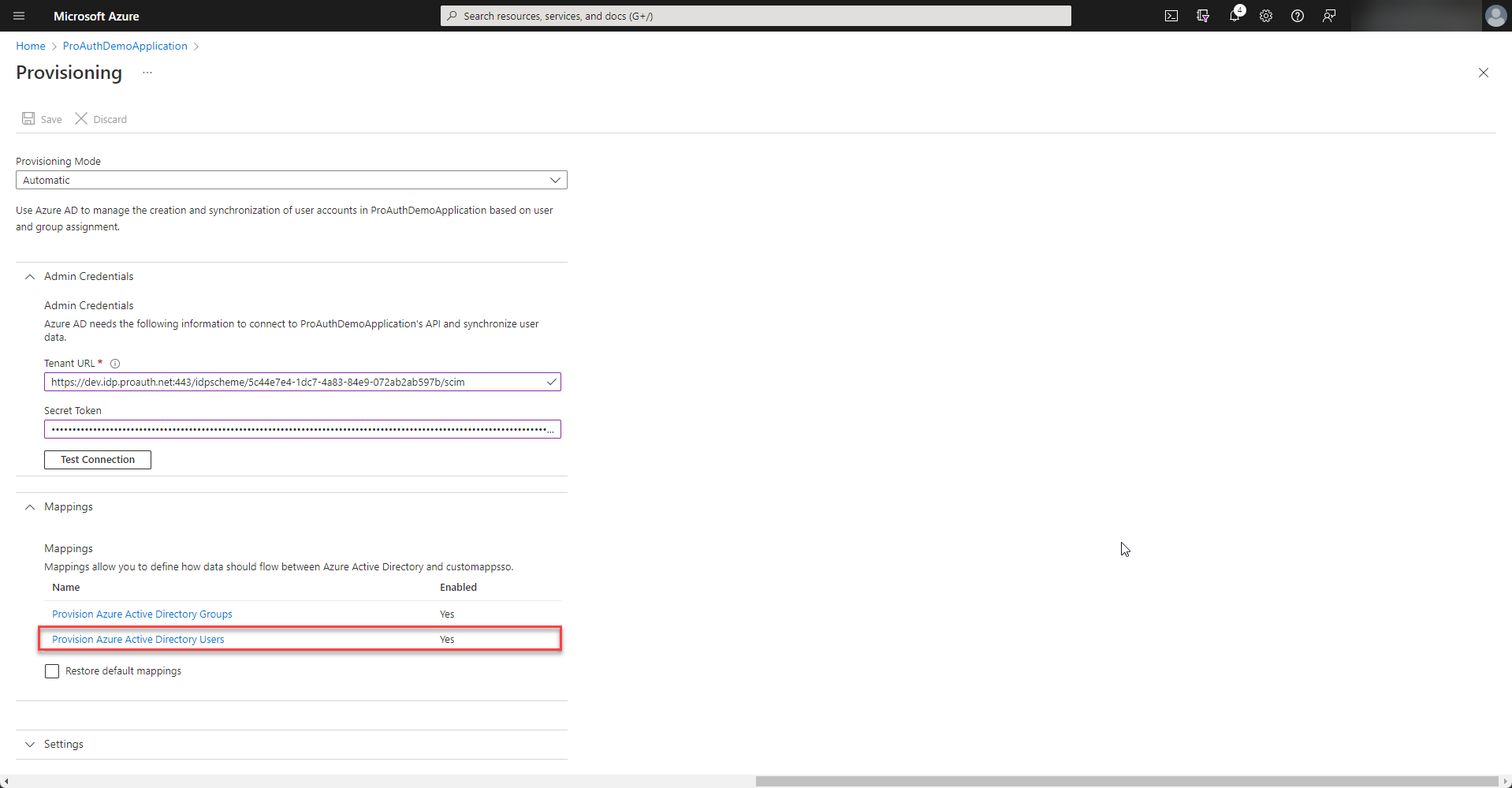

4. In order to match the ids of the user correctly, the externalid mapping needs to be customized. Therefore select to modify the mapping of the users.

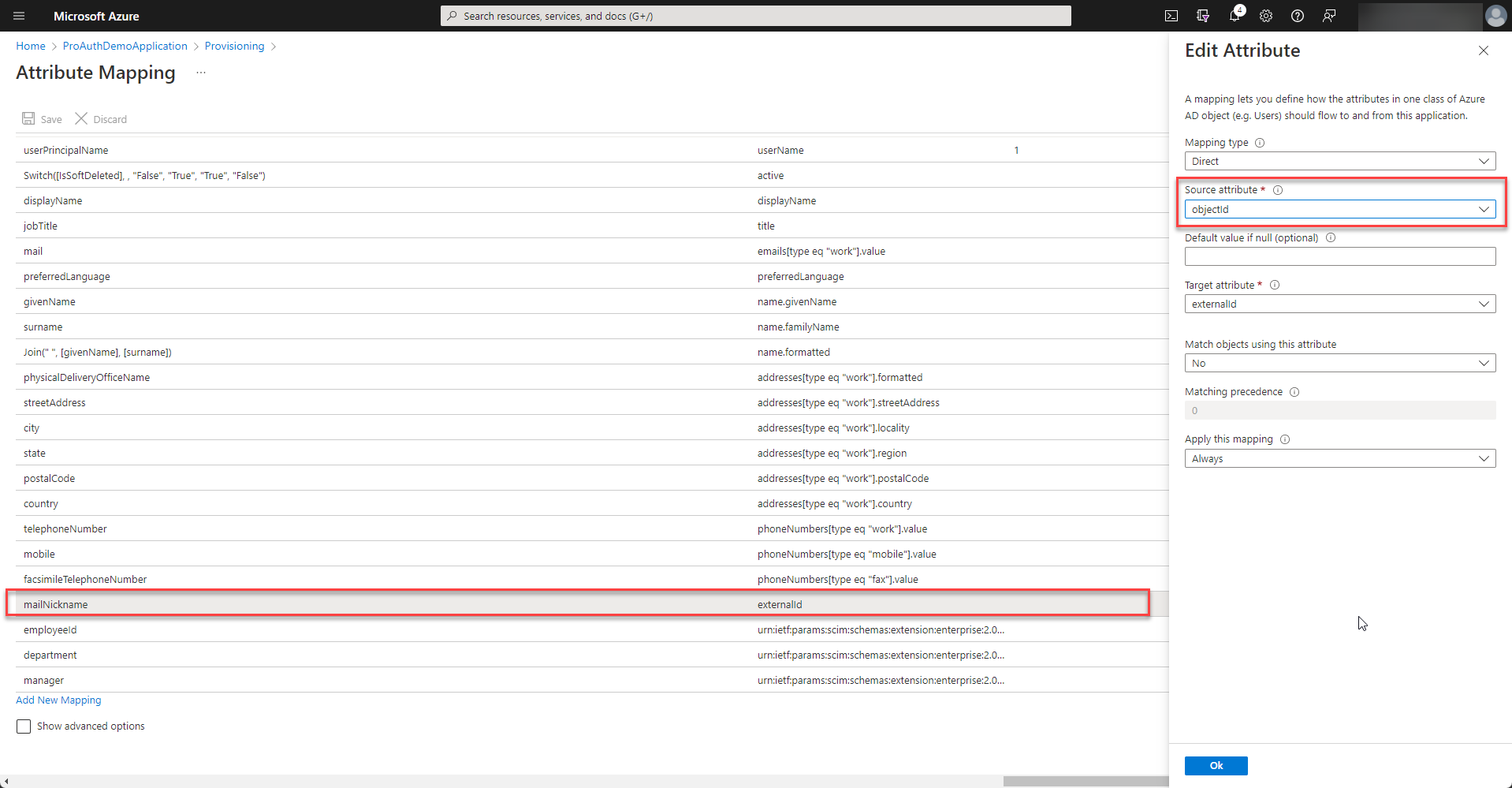

5. Double click the externalId mapping and change the source attribute to objectId.

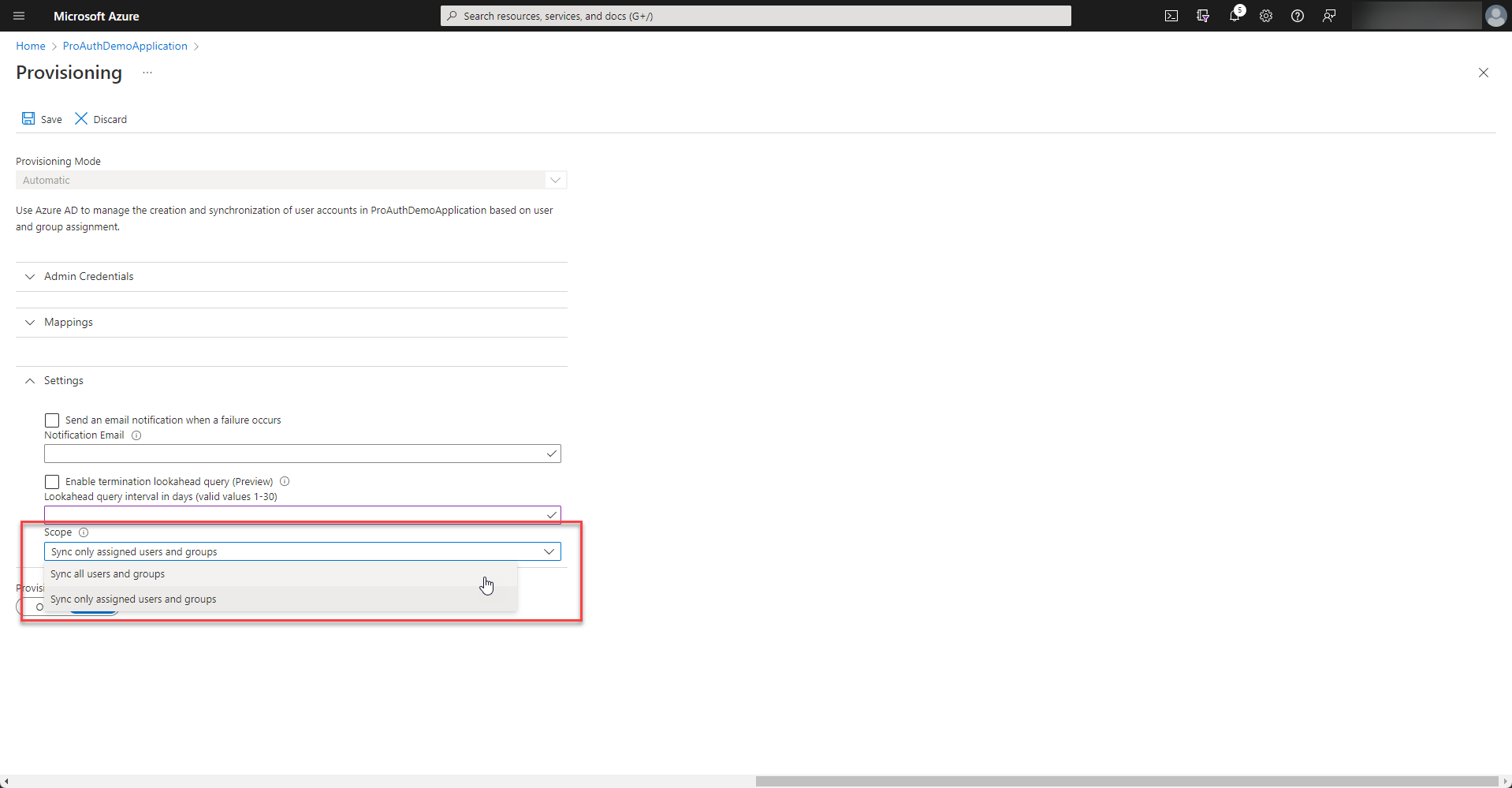

6. Depending on your enterprise application setup, only assigned users or all users of your directory are synchronized. If there is no assignment made, please select "Sync all users and groups".



7. Once all the settings are in place, the provisioning can be started.



8. Azure Active Directory runs the synchronization every 40 minutes. There is a detailed log of each synchronization job and also e-mail alerts can be configured. Please review the logs of the first synchronization jobs if any error occured.



For this enterprise application, a corresponding app registration has been created. Please follow the steps in chapter @sec:setupappregistrationaad to configure the federated authentication. Please make sure that the option "Auto Create ProAuth User" is disabled because the users and groups are now managed by SCIM provisioning.

Setup ProAuth.DirectorySync for Active Directory Provisioning

For synchronizing Windows AD with ProAuth, there exists a sync tool from ProAuth.

The ProAuth.DirectorySync tool synchronizes the Windows AD users and groups with ProAuth.

Configuration for the ProAuth.DirectorySync settings

Replace the following setting placeholders __<placeholder>__ with your values:

Setting	Value / Description
__ScimHost__	The ProAuth SCIM API uri
__ScimIdpInstance__	The IDP Instance Id
__ScimToken__	The SCIM Security Token created in the IDP Instance
__LdapDomain__	The LDAP Domain uri
__LdapRootDirectory__	The LDAP root directory
__LdapUser__	Windows user with permissions to read all LDAP entries
__LdapPassword__	Password for the windows user
__LdapGroupSearchFilter__	The LDAP groups filters, separated by pipes
__LdapUserSearchFilter__	The LDAP users filters, separated by pipes

Settings file

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft": "Warning",
      "Microsoft.Hosting": "Warning",
      "System": "Warning"
    }
  },
  "ProAuthDirectorySync": {
    "Scim": {
      "Host": "__ScimHost__",
      "Port": null,
      "IdpInstance": "__ScimIdpInstance__",
      "Token": "__ScimToken__",
      "AcceptAnyServerCertificates": false
    },
    "Ldap": {
      "Domain": "__LdapDomain__",
      "RootDirectory": "__LdapRootDirectory__",
      "User": "__LdapUser__",
      "Password": "__LdapPassword__",
      "GroupSearchFilter": "__LdapGroupSearchFilter__",
      "UserSearchFilter": "__LdapUserSearchFilter__"
    },
    "SynchronizeIntervalInMinutes": "40"
  }
}

SCIM Attribute Mapping

This document describes how SCIM 2.0 attributes are mapped to ProAuth entities during synchronization operations. ProAuth supports both User and Group resources with comprehensive attribute mapping.

User Attribute Mapping

ProAuth maps SCIM User attributes to ProAuthUser entities using both direct field mapping and a flexible profile-based key-value store for extended attributes.

Core User Attributes

These SCIM attributes are mapped directly to ProAuthUser entity fields:

SCIM Attribute	ProAuth Field	Type	Description
id	Id	Guid	Internal ProAuth user identifier
externalId	ScimExternalId	string	External system identifier
userName	ScimLoginName, LoginName	string	Primary login username
active	IsUserActive	bool	User account status
name.givenName	FirstName	string	User's first name
name.familyName	LastName	string	User's last name
emails[primary=true].value	EmailAddress	string	Primary email address
emails[].value	EmailAddress	string	Fallback email (if no primary)
enterpriseExtension.manager.value	ManagerId	Guid?	Manager reference (ProAuth user ID)
enterpriseExtension.organizationalUnit	OrganizationalUnit	string	Organizational unit

User Profile Attributes

These SCIM attributes are stored as key-value pairs in the ProAuthUserProfiles collection:

Simple Attributes

SCIM Attribute	Profile Key	Type	Description
displayName	DisplayName	string	Display name
locale	Locale	string	User locale
nickName	Nickname	string	Nickname
preferredLanguage	PreferredLanguage	string	Preferred language
timezone	TimeZone	string	User timezone
title	Title	string	Job title
userType	UserType	string	User type classification

Complex Attributes (JSON Serialized)

SCIM Attribute	Profile Key	Type	Description
addresses	Addresses	JSON	Array of address objects
emails	ElectronicMailAddresses	JSON	Array of email objects
ims	InstantMessagings	JSON	Array of instant messaging objects
name	Name	JSON	Complete name object
phoneNumbers	PhoneNumbers	JSON	Array of phone number objects
roles	Roles	JSON	Array of role objects
customExtension	CustomExtension	JSON	Custom extension attributes
enterpriseExtension	EnterpriseExtension	JSON	Enterprise extension attributes

User Profile Storage Details

• Key: The profile key matches the SCIM attribute name (e.g., DisplayName, Addresses)
• Value: For simple attributes, stored as string. For complex attributes, JSON serialized
• Removal: When a SCIM attribute is empty or null, the corresponding profile entry is removed
• JSON Serialization: Uses System.Text.Json with SCIM-compatible settings

Example User Profile Entries

// Simple profile entry
{
  "Key": "DisplayName",
  "Value": "John Doe"
}

// Complex profile entry
{
  "Key": "Addresses",
  "Value": "[{\"type\":\"work\",\"streetAddress\":\"123 Main St\",\"locality\":\"City\",\"region\":\"State\",\"postalCode\":\"12345\",\"country\":\"US\",\"primary\":true}]"
}

Group Attribute Mapping

ProAuth maps SCIM Group attributes to ProAuthGroup entities with member relationship management.

Core Group Attributes

SCIM Attribute	ProAuth Field	Type	Description
id	Id	Guid	Internal ProAuth group identifier
externalId	ScimExternalId	string	External system identifier
displayName	Name	string	Group display name

Group Membership

SCIM Attribute	ProAuth Relationship	Type	Description
members[type="User"]	MemberUsers	Collection	User members
members[type="Group"]	MemberGroups	Collection	Group members (nested groups)

Group Membership Details

• User Members: members array with type="User" maps to MemberUsers collection
• Group Members: members array with type="Group" maps to MemberGroups collection
• Bidirectional: Relationships are maintained in both directions:
  • Users have MemberOfGroups collection
  • Groups have ParentGroups collection
• Member Value: The value field contains the ProAuth entity ID (Guid)
• Type Handling: If type is omitted, ProAuth attempts to resolve as either User or Group

Supported SCIM Operations

User Operations

• CREATE: Creates new ProAuth user with federated identity
• READ: Returns SCIM user with all mapped attributes
• UPDATE: Updates ProAuth user and profiles
• PATCH: Supports partial updates
• DELETE: Removes ProAuth user and relationships
• QUERY: Supports filtering by userName and externalId

Group Operations

• CREATE: Creates new ProAuth group
• READ: Returns SCIM group with members
• UPDATE: Updates group and membership
• PATCH: Supports partial updates including membership changes
• DELETE: Removes ProAuth group and relationships
• QUERY: Supports filtering by displayName

Query and Filtering

Supported Filters

Users

• userName eq "value" - Filters by ScimLoginName
• externalId eq "value" - Filters by ScimExternalId

Groups

• displayName eq "value" - Filters by Name

Pagination

• startIndex: 1-based SCIM pagination (converted to 0-based internally)
• count: Maximum number of results per page
• totalResults: Total number of matching resources

Data Validation

User Validation

• userName is required for create/update operations
• externalId is required for create operations
• Manager references must exist in ProAuth
• Duplicate usernames within the same IdP instance are rejected

Group Validation

• displayName is required for create/update operations
• externalId is required for create operations
• Duplicate group names within the same IdP instance are rejected
• Member references must exist in ProAuth

Multi-Tenant Considerations

All SCIM operations are scoped to:

• IdP Instance: Each SCIM endpoint serves a specific IdP instance
• Subscription: Users and groups belong to a specific subscription
• Isolation: Complete data isolation between tenants

Error Handling

Common HTTP Status Codes

• 400 Bad Request: Missing required fields or invalid data
• 404 Not Found: Resource not found
• 409 Conflict: Duplicate username/group name or constraint violations
• 500 Internal Server Error: System errors

Specific Error Scenarios

• Manager Not Found: Returns 400 with descriptive error when manager ID doesn't exist
• Member Not Found: Silently skips invalid member references during group updates
• Constraint Violations: Returns 409 for duplicate usernames or group names

Performance Considerations

• Batch Operations: Use SCIM bulk operations for large data sets
• Profiles: Complex attributes in profiles have JSON serialization overhead
• Relationships: Group membership changes trigger relationship updates
• Caching: ProAuth caches frequently accessed entities
• Async Operations: All database operations use async patterns for scalability
